425 beaver tail clip to mount on

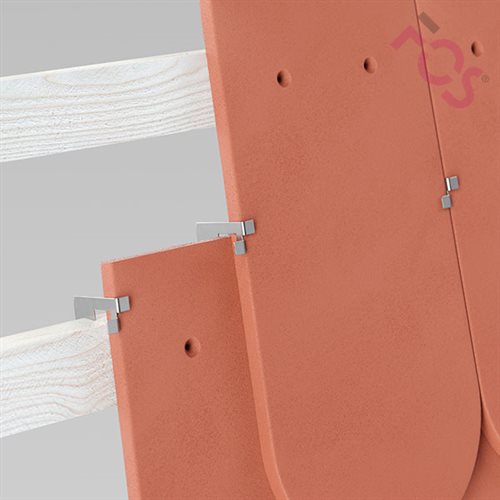

Beaver tail clip 425 secures crown and double coverings as well all tower beaver tiles. The new clip design and laying pattern makes the replacement of individual beaver tiles quick and easy.

The handy form of 425 prevents interlocking of clips one beneath another and facilitates tool-free installation. The shape of the clip provides an easy handling in all stages.

Smaller pack sizes and light weight enable ease of use at the roof and warehouse. Each package contains 500 units capable of fixing an average roof area of up to 22 m2.

The storm clips are installed in rows rather than the standard diagonal laying pattern. This results in higher wind uplift resistance and simplifies the laying process.

Fixing time for 425 is reduced significantly through its handy form, tool-free installation and effective row format laying pattern.

425 are available in various sizes suitable for diverse beaver thicknesses and batten depths. Stainless steel BS 304 S 15 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the clip. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the beaver and the batten.

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301

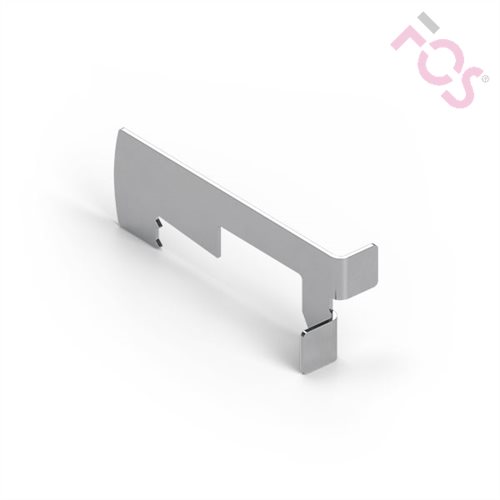

FOS beaver tail clip 425
BattensCode
24 x XX425001
24 x XX425002
24 x XX425003
24 x XX425004
24 x XX425024
24 x XX425027
30 x XX425005
30 x XX425006
30 x XX425007
30 x XX425008
30 x XX425025
30 x XX425028
30 x XX425030
40 x XX425009
40 x XX425010
40 x XX425011
40 x XX425012
40 x XX425026
40 x XX425029
40 x XX425032
Application picture Installation instruction Product flyer Video

Advantages

  • Suitable for double-lap.
  • Suitable for crown tile roofing.
  • Suitable for tower plain tile.
  • Storm safety in compliance with professional standards.
  • High wind uplift resistance.
  • High quality materials.
  • Deliverable in various sizes depending on beaver thicknesses.
  • Suitable for standard wooden battens.
  • Faster laying in rows.
  • Easier exchange of individual beavers.
  • Handy design.
  • Optimised clip focal point facilitates secure fit.
  • Tool-free installation.
  • Shorter installation time.
  • International patents EP NP pending.
  • German Federal Utility Model DBGM.
  • Tested according to EN 14437.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
