415®K beaver tail clip to mount on

Beaver tail tiles, in a double-lap layout, are fixed with the 415c® clip. Laborious tile drilling and screwing work is eliminated. For buildings in exposed areas, such as churches and the like, FOS also advises using the 415®K beaver tail clip. It connects two rows of Beaver tail tiles with one another and reliably prevents the beaver tail tiles from raising in the foot area. A combination of the 415c® and the 415®K is also used for beaver tail tiles in a crown tile roofing layout. The 415c® creates the connection to the main battens, while the 415®K connects the covering layer and the bearing layer.

It is advisable to use the 415® screw variant for special battens for which there is no suitable 415c® in stock. This is screwed down on the tiling batten between two beaver tail tiles and is available for beaver tail tiles of different thicknesses. Stainless steel in 1.4301 (A2) quality or ZIAL® (zinc aluminium) coated surfaces guarantee the beaver tail clip’s long-lasting durability. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the beaver and the batten.

Stainless-steel-17981
1.4301

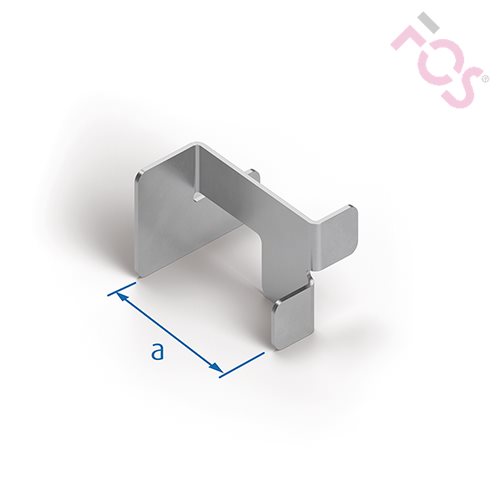

FOS Biberschwanzklammer 415K 003
aBeaver thicknessCode
025,010 -< 12415K01
029,012 -< 14415K02
033,014 -< 16415K03
037,016 -< 18415K04
041,018 -< 20415K05

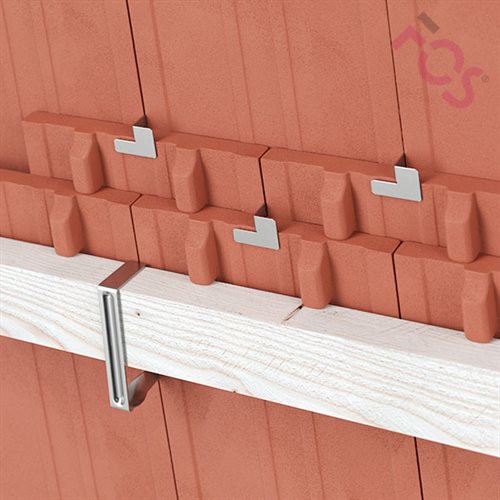

Application picture Product flyer

Advantages

  • Suitable for crown tile roofing.
  • Storm safety in compliance with professional standards.
  • Deliverable in various sizes depending on beaver thicknesses.
  • Tool-free installation.
  • Tested according to EN 14437.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
