499-2 sidelock clip to mount on


Due to its two notches, the 499-2 sidelock clip can be clamped onto both a 30 x 50 batten and a 40 x 60 batten.

In order to simplify the handling of the clip for roofers, FOS® offers the 499-2 collated on plastic strips. Each strip contains 25 clips and is suitable for the FOS ClipHOLSTER®. The collated clips allow for swift removal from its package.

On the roof the use of the ClipHOLSTER accelerates the installation considerably. Because the ClipHOLSTER is fastened to the belt, the clips are within easy reach. The roofer has his hands free and can therefore work more efficiently. Empty magazine strips can be replaced quickly and conveniently. In practical tests, time savings of up to 25 % were recorded. Note: When mounting 499-2 strips, the red protective cover cannot be used.

The clip is available in various lengths and with a round and an angular hook. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 or BS 301 S 22 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the sidelock clip. The 499-2 is offered in packaging units of 250 pieces each.

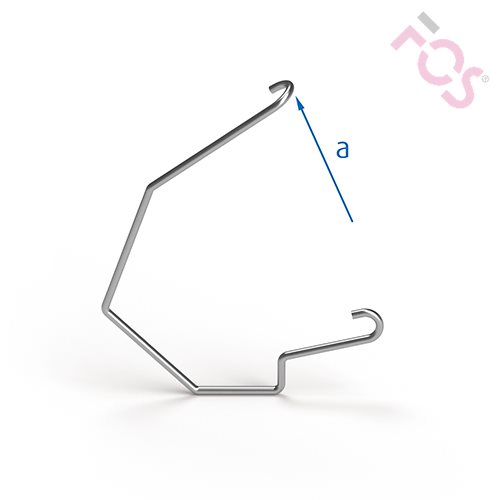

With round hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
Stainless-steel-17981
1.4310
magaziniert
POM
FOS sidelock clip 499 002
aBattensCode
005,030 x 50 / 40 x 60499202
005,030 x 50 / 40 x 60499203
006,030 x 50 / 40 x 60499206
004,030 x 50 mm499215
004,040 x 50499217
004,040 x 60499216
007,5499221

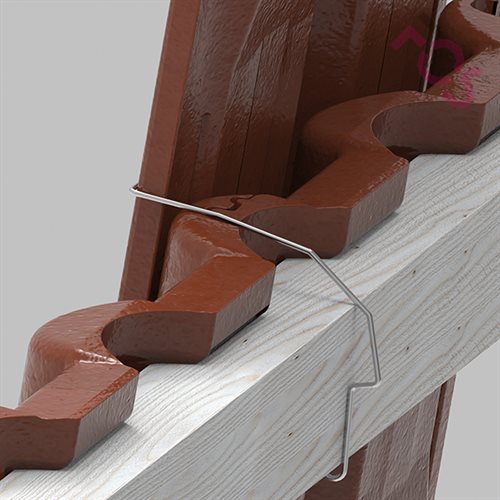

Application picture Installation instructionProduct flyerVideo

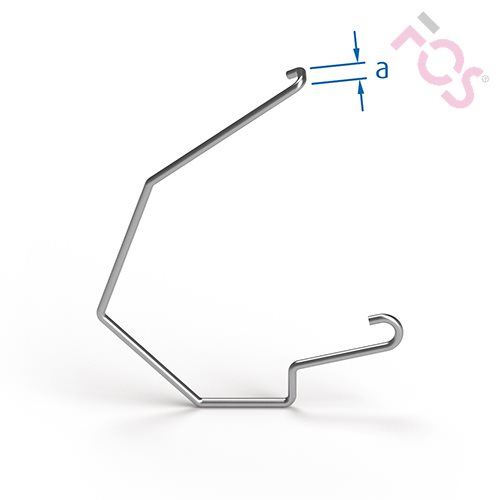

With angular hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4310
magaziniert
POM
FOS sidelock clip 499 001
aBattensCode
006,030 x 50 / 40 x 60499201
006,030 x 50 / 40 x 60499204
006,030 x 50 / 40 x 60499205
006,030 x 50 / 40 x 60499211
007,530 x 50 / 40 x 60499209
006,050 x 50499212

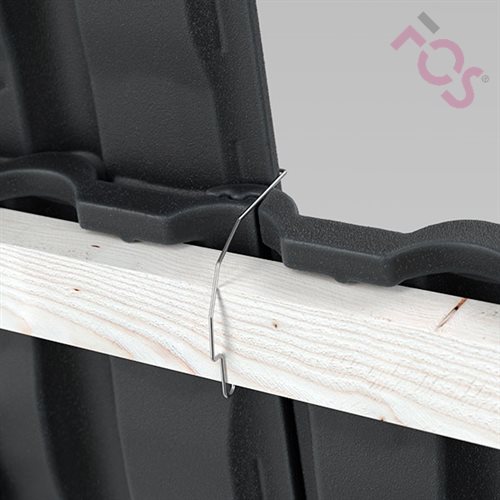

Application picture Installation instructionProduct flyerVideo

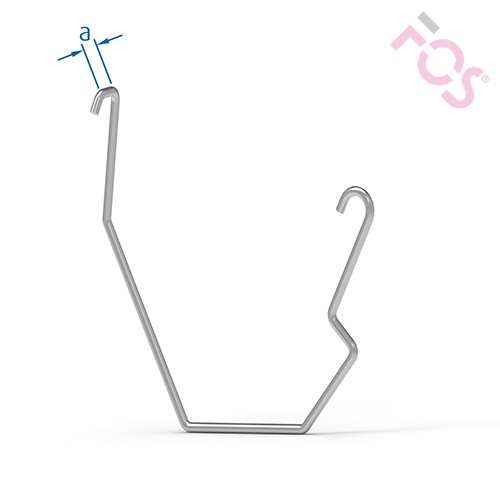

With angular hook on the right-hand side

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4310
magaziniert
POM
FOS sidelock clip 499 218
aBattensCode
007,530 x 50 / 40 x 60499218
Application picture Installation instructionProduct flyerVideo

Advantages

  • Storm safety in compliance with professional standards.
  • High quality materials.
  • Deliverable in round and angular hook forms.
  • Suitable for standard wooden battens.
  • Suitable for most standard roof tiles.
  • Tool-free installation.
  • Storage on POM strips for FOS ClipHOLSTER®.
  • Low risk of injury.
  • Industrial design GM.
  • Packaging unit: 250 pcs.
