409® sidelock clip to drive in

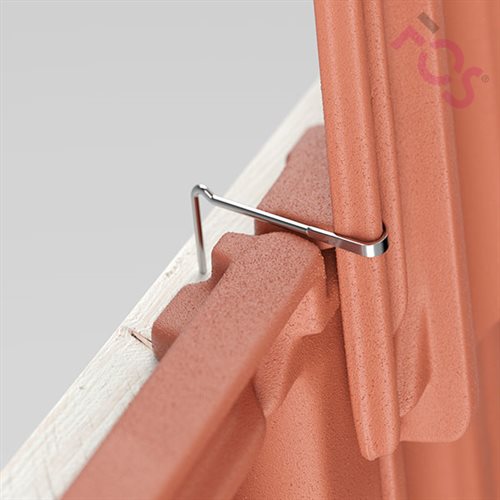

With the 409® sidelock clip, FOS offers a secure hold on the roof and guarantees a high level of resistance against wind uplift loading. As a drive-in clip, it can be used for all battens. Firmly hammered into the tiling batten, the clip’s hook grips the outer side lock of the roof tile above.

Stainless steel in 1.4301 (A2) quality or ZIAL® (zinc aluminium) coated surfaces guarantee the sidelock clip’s long-lasting durability. The clip is available in various lengths and with a round and an angular hook. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten.

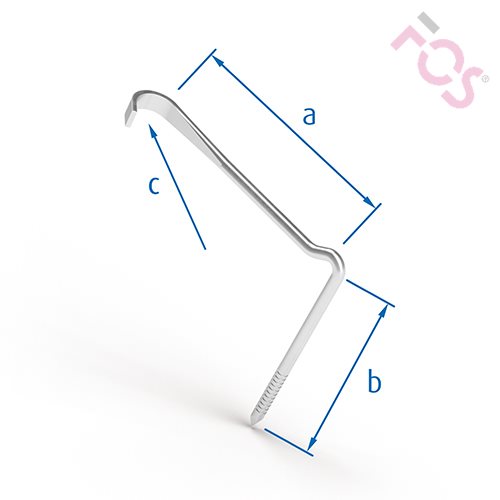

With round hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS Seitenfalzklammer 409 rund
abcCode
048,0048,0005,5409015
048,0065,0005,5409016
048,0075,0005,5409011
048,0085,0005,5409007
055,0048,0005,5409025
060,0048,0005,5409031
065,0048,0005,5409001
065,0065,0005,5409010
065,0075,0005,5409013
075,0038,0005,5409008
075,0048,0005,5409002
075,0065,0005,5409003
075,0075,0005,5409004
085,0048,0005,5409012
085,0065,0005,5409005
085,0075,0005,5409014
095,0048,0005,5409009
095,0073,0005,5409006
105,0048,0005,5409017
Application picture Installation instruction Product flyer Video

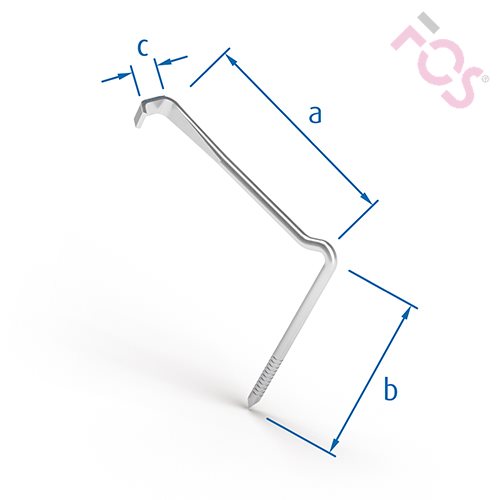

With angular hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS Seitenfalzklammer 409 eckig
abcCode
043,0048,0009,5409036
048,0038,0009,5409034
048,0048,0009,5409019
065,0048,0009,5409020
065,0065,0013,2409039
075,0048,0009,5409028
075,0048,0013,2409032
085,0048,0009,5409026
Application picture Installation instruction Product flyer Video

Advantages

  • Storm safety in compliance with professional standards.
  • High wind uplift resistance.
  • High quality materials.
  • Deliverable in different lengths.
  • Deliverable in round and angular hook forms.
  • Suitable for standard wooden battens.
  • Suitable for most standard roof tiles.
  • Drive-in aid.
  • Ring shanked.
  • Tested according to EN 14437.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
