436 sidelock clip to screw

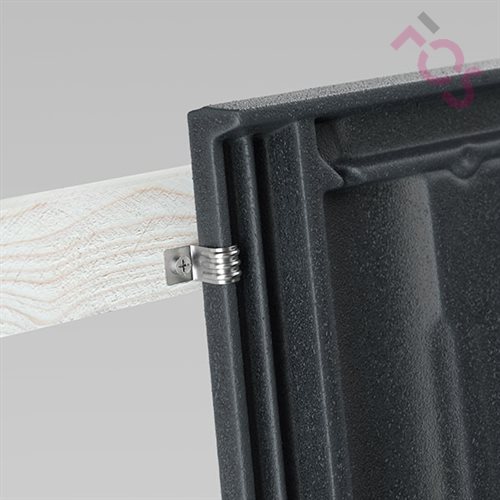

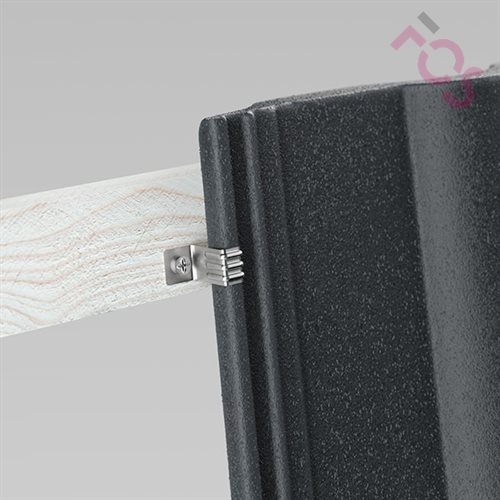

The sidelock clip 436 is screwed onto the front of the batten. It is also used to secure tiles in the eaves area.

The clip is available in various dimensions with a round and an angular hook. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 or ZIAL® (zinc aluminium) coated surfaces guarantee long durability of the sidelock clip. The 436 is offered in packaging units of 250 pieces each.

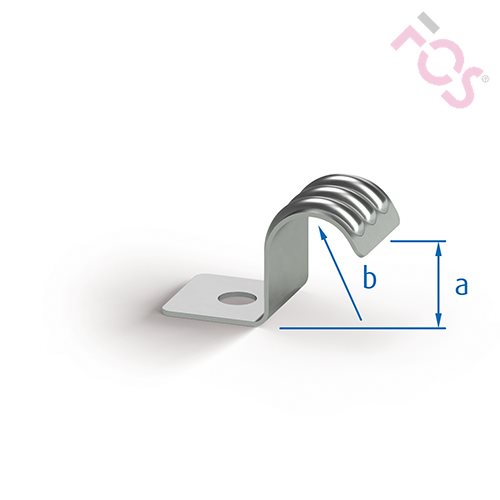

With round hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS sidelock clip 436 rund
abCode
015,0006,0436001
020,0006,0436002
025,0006,0436003
030,0006,0436004
035,0006,0436005
040,0006,0436006
045,0006,0436007
050,0006,0436008
Application picture Installation instruction

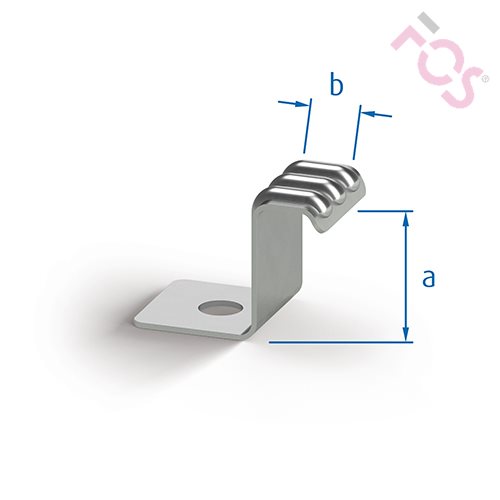

With angular hook

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS sidelock clip 436 6mm
abCode
015,0006,0436009
020,0006,0436010
025,0006,0436011
030,0006,0436012
035,0006,0436013
040,0006,0436014
045,0006,0436015
050,0006,0436016
Application picture Installation instruction

Advantages

  • Deliverable in different lengths.
  • Deliverable in round and angular hook forms.
  • For screwing at batten.
  • Packaging unit: 250 pcs.
