512 hip and valley clip to screw

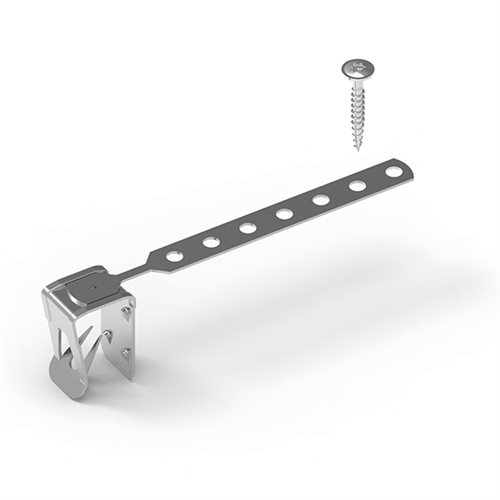

The hip and valley clip 512 secures cut tiles on the hip against slip-off. It is hammered onto the cutting edge and attached to the sub-construction with the 60 mm long integrated screw. The drilling of a hole into the cut tile is not necessary and shorter installation times in the hip area are guaranteed. The three-fold spring claw also provides secure hold on uneven surfaces or embossed letters on the back of the roof tile. Different sizes of the hip and valley clip also guarantee a problem-free fixing of thicker roof tiles. When the clip is hammered on the side of the roof tile, it can replace the missing nose, which holds the tile on the batten or subconstruction. Stainless steel in the quality 1.4310 guarantees a long durability. The small packaging units are very convenient when it comes to jobs like repair works.

Stainless-steel-17981
1.4310
FOS hip and valley clip 512
Clamping areaCode
10 - 13512003
13 - 17512004
17 -~ 21512005

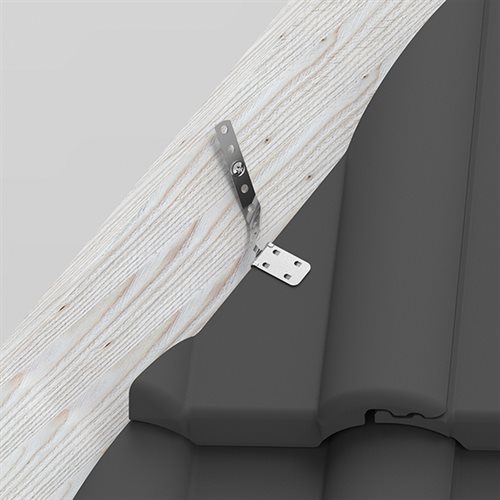

Application picture Installation instruction Product flyer

Advantages

  • Suitable for cut pieces at hip.
  • No perforation of underlays through fixing to hip battens.
  • Can be used in a variety of ways as installation aid at connections and terminations.
  • High quality materials.
  • Shorter installation time.
  • Small packaging units.
  • International patents EP NP.
  • German Federal Patent DBP.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
