403®d-2 head-foot clip to drive in

Keeping cut roof tiles around windows and valleys in place with wire is tiring and time consuming. This can be done faster and more effi cient with a head-foot clip. The 403®d-2 clip for nailing is positioned in the overlapping area of two roof tiles and secures the tile in the top and bottom section. The clip effectively prevents tiles from slipping down.

In addition to keeping cut pieces in place, the head-foot clip can also be used for complete roof tiles with little or no head lock. For tiles with pronounced head locks these locks need to be smoothened where the clip is attached.

In order to simplify the handling of the clip for roofers, FOS offers the 403®d-2 collated on plastic strips. Each strip contains 25 clips and is suitable for the FOS ClipHOLSTER®. The magazine clip storage on plastic strips enables swift individual clip removal and reduces the risk of injury as well.

On the roof the use of the ClipHOLSTER accelerates the installation considerably. Because the ClipHOLSTER is fastened to the belt, the clips are within easy reach. The roofer has his hands free and can therefore work more efficiently. Empty magazine strips can be replaced quickly and conveniently. Note: When mounting 403®d-2 strips, the red protective cover cannot be used.

Different types are required depending on the overlap dimensions, thickness and shape of the roof tiles. The product locator FOS ClipCHECK® determines the the perfect clip by entering the area of application, the type of mounting, the roof tile and the battens. Stainless steel in 1.4301 (A2) quality guarantees the verge clip’s long-lasting durability.

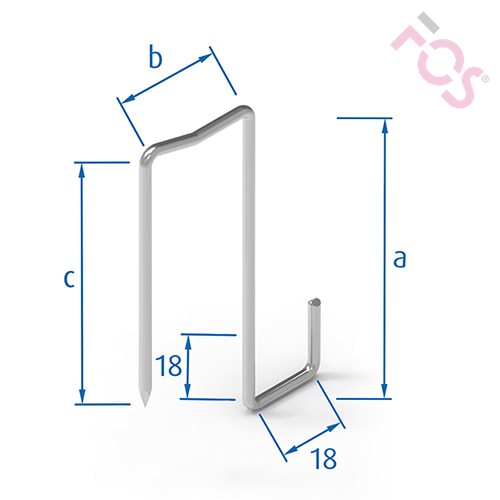

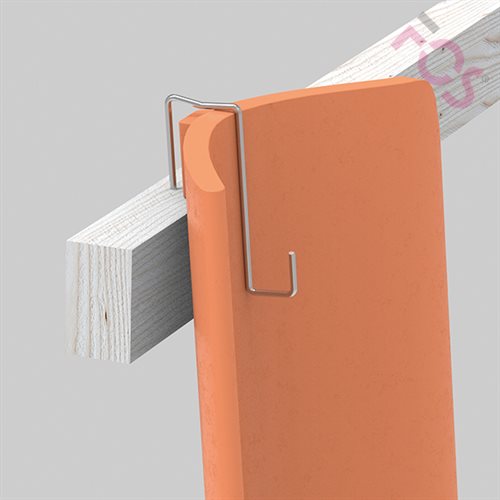

Foot holder 18 x 18 mm, angular

Stainless-steel-17981
1.4301
magaziniert
POM
FOS Kopf Fussklammer 403d 2 01
abcCode
080,0030,0065,0403d21
090,0030,0065,0403d24
100,0030,0065,0403d27
Application picture Installation instruction Product flyer

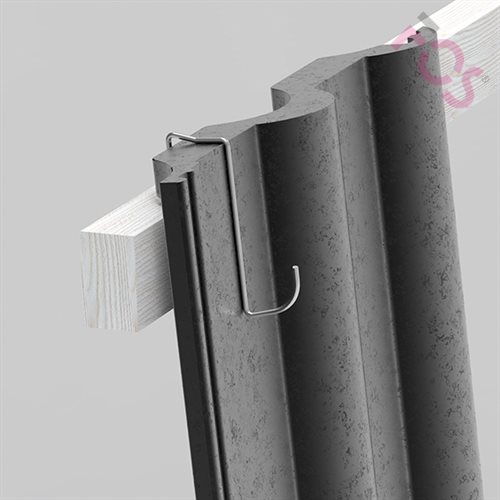

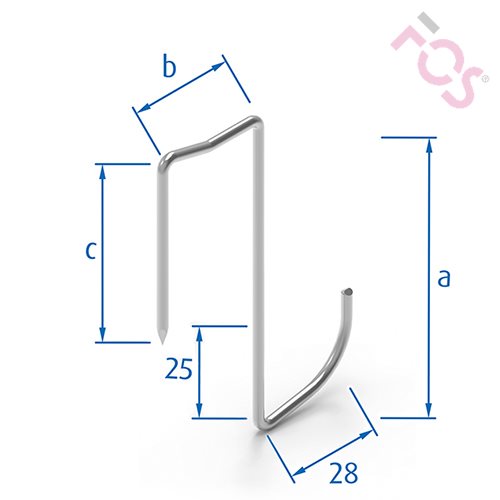

Foot holder 28 x 25 mm, round

Stainless-steel-17981
1.4301
magaziniert
POM
FOS Kopf Fussklammer 403d 2 02
abcCode
080,0030,0050,0403d22
090,0030,0050,0403d25
100,0030,0050,0403d28
Application picture Installation instruction Product flyer

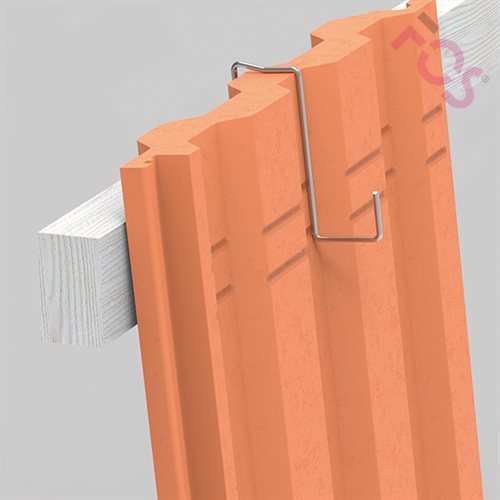

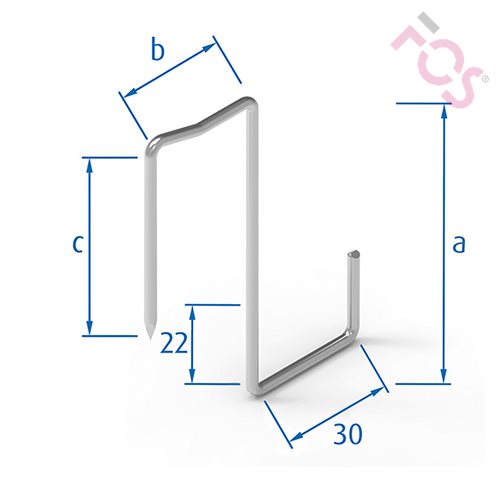

Foot holder 30 x 22 mm, angular

Stainless-steel-17981
1.4301
magaziniert
POM
FOS Kopf Fussklammer 403d 2 03
abcCode
080,0030,0050,0403d23
090,0030,0050,0403d26
100,0030,0050,0403d29
Application picture Installation instruction Product flyer

Advantages

  • Suitable for cut pieces at hip.
  • Suitable as replacement nibs in case of missing hanging nibs.
  • Can be used in a variety of ways as installation aid at connections and terminations.
  • High quality materials.
  • Suitable for standard wooden battens.
  • Replacement of single tiles possible.
  • Nail tip.
  • Shorter installation time.
  • Storage on POM strips for FOS ClipHOLSTER®.
  • Low risk of injury.
  • Small packaging units.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
