403®-2 head-foot clip to mount on

Keeping cut roof tiles around windows and valleys in place with wire is tiring and time consuming. This can be done faster and more effi cient with a head-foot clip. The tool-free 403®-2 clip is positioned in the overlapping area of two roof tiles and secures the tile in the top and bottom section. The clip effectively prevents tiles from slipping down.

In addition to keeping cut pieces in place, the headfoot clip can also be used for complete roof tiles with little or no head lock. For tiles with pronounced head locks these locks need to be smoothened where the clip is attached.

In order to simplify the handling of the clip for roofers, FOS offers the 403®-2 collated on plastic strips. Each strip contains 25 clips and is suitable for the FOS ClipHOLSTER®. The collated clips allow for swift removal from its package.

On the roof the use of the ClipHOLSTER accelerates the installation considerably. Because the ClipHOLSTER is fastened to the belt, the clips are within easy reach. The roofer has his hands free and can therefore work more efficiently. Empty magazine strips can be replaced quickly and conveniently. Note: When mounting 403®-2 strips, the red protective cover cannot be used.

Different types are required depending on the overlap dimensions, thickness and shape of the roof tiles. The product locator FOS ClipCHECK® determines the the perfect clip by entering the area of application, the type of mounting, the roof tile and the battens. Stainless steel in 1.4301 (A2) quality guarantees the verge clip’s long-lasting durability.

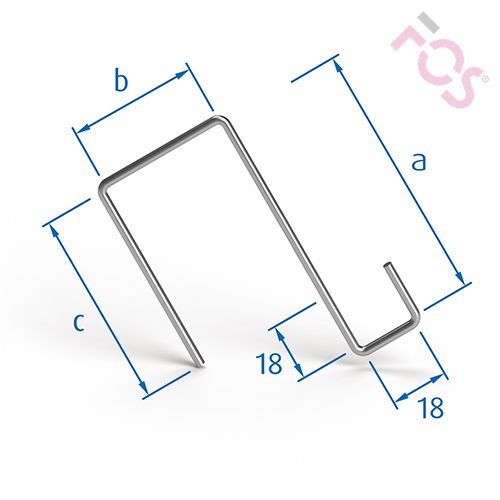

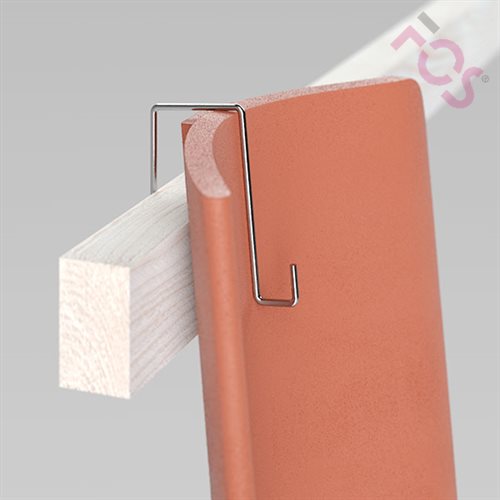

Foot holder 18 x 18 mm, angular

Stainless-steel-17981
1.4301
magaziniert
POM
FOS Kopf Fussklammer 403 2 01
abcCode
080,0040,0060,0403201
080,0050,0060,0403206
090,0040,0060,0403202
090,0050,0060,0403222
100,0040,0060,0403203
100,0050,0060,0403226
Application picture Installation instruction Product flyer

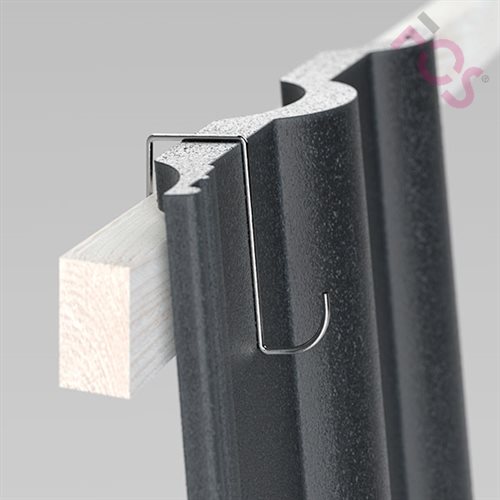

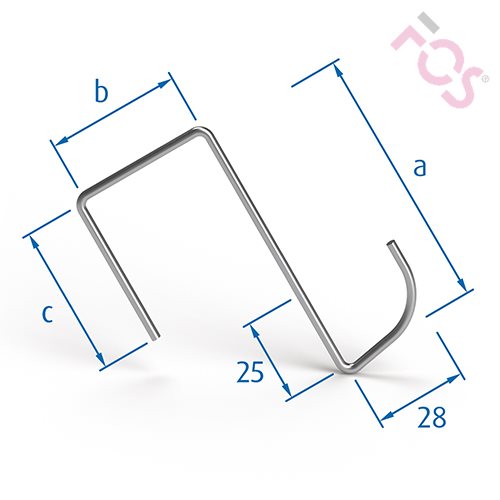

Foot holder 28 x 25 mm, round

Stainless-steel-17981
1.4301
magaziniert
POM
FOS Kopf Fussklammer 403 2 02
abcCode
080,0040,0045,0403205
080,0040,0045,0403239
080,0045,0045,0403246
080,0050,0045,0403214
080,0055,0045,0403248
085,0060,0045,0403207
090,0040,0045,0403212
090,0045,0045,0403249
090,0050,0045,0403223
090,0055,0045,0403251
090,0060,0045,0403234
100,0040,0045,0403210
100,0045,0045,0403250
100,0050,0045,0403216
100,0055,0045,0403252
100,0060,0045,0403235
110,0055,0045,0403253
120,0040,0045,0403244
403233
Application picture Installation instruction Product flyer

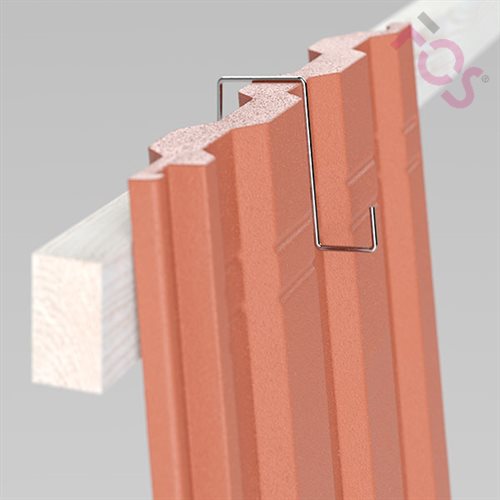

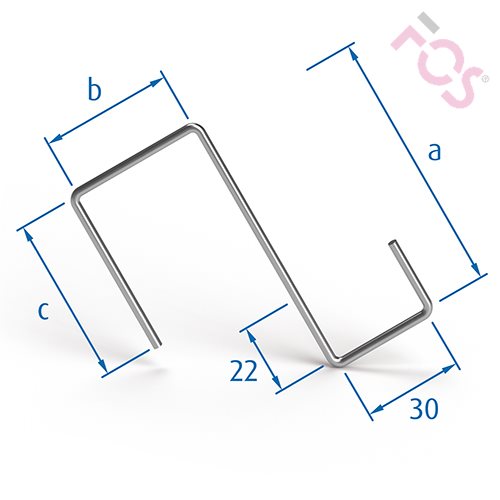

Foot holder 30 x 22 mm, angular

Stainless-steel-17981
1.4301
Stainless-steel-17981
1.4571
magaziniert
POM
FOS Kopf Fussklammer 403 2 03
abcCode
080,0040,0045,0403218
080,0050,0045,0403219
080,0060,0045,0403231
085,0060,0045,0403220
090,0040,0045,0403213
090,0040,0090,0403237
090,0050,0045,0403224
100,0040,0045,0403211
100,0050,0045,0403217
403228
Application picture Installation instruction Product flyer

Advantages

  • Suitable for cut pieces at hip.
  • Suitable as replacement nibs in case of missing hanging nibs.
  • Can be used in a variety of ways as installation aid at connections and terminations.
  • High quality materials.
  • Suitable for standard wooden battens.
  • Replacement of single tiles possible.
  • Tool-free installation.
  • Shorter installation time.
  • Storage on POM strips for FOS ClipHOLSTER®.
  • Small packaging units.
  • Made in Germany.
  • 48-hour delivery.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
