453-2 head-sidelock clip to nail


In order to simplify the handling of the clip for roofers, FOS® offers the 453-2 collated on plastic strips. Each strip contains 25 clips and is suitable for the FOS ClipHOLSTER®. The magazine clip storage on plastic strips enables swift individual clip removal and reduces the risk of injury as well.

On the roof the use of the ClipHOLSTER accelerates the installation considerably. Because the ClipHOLSTER is fastened to the belt, the clips are within easy reach. The roofer has his hands free and can therefore work more efficiently. Empty magazine strips can be replaced quickly and conveniently. In practical tests, time savings of up to 25 % were recorded. Note: When mounting 453-2 strips, the red protective cover cannot be used.

The 453-2 is always appropriate if the roof tiles don’t have any fourfold overlapping in the 4-tile corner. With its two hooks it fastens two tiles on the battens at the same time: one tile on the side-lock, another on the head-lock. This fixation guarantees a high lifting resistance.

The 453-2 is available in 18 different versions for various roof tiles with and without fold for all battens usual in Europe. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 301 S 22 guarantees long durability of the head-sidelock clip. The 453-2 is offered in small packaging units of 200 pieces each.


Stamp of approval DIN EN 14437FOS quality Made in Germany and tested according to DIN EN 14437

This storm clip has been produced in FOS® quality Made in Germany and tested according to DIN EN 14437.



Stainless-steel-17981
1.4310
magaziniert
POM

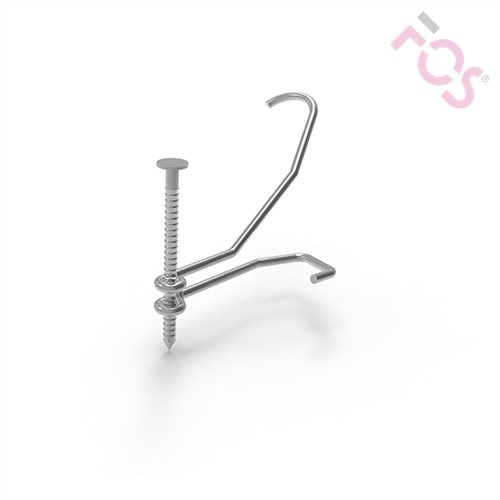

FOS head-sidelock clip 453-206
Code
453201
453203
453205
453206
453207
453210
453211
453212
453214
453215
453216
453217
453218
453219
453220
453221
453222
453223
453224
453225
453226
453227
453228
453229

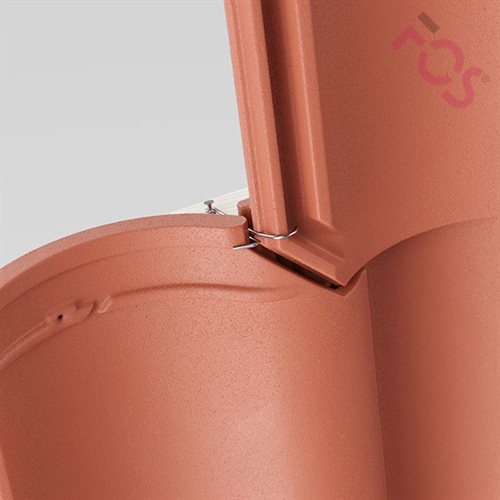

Application picture Installation instructionProduct flyerVideo

Advantages

  • Storm safety in compliance with professional standards..
  • High wind uplift resistance.
  • High quality materials.
  • Deliverable in different designs for various roof tiles.
  • Suitable for standard wooden battens.
  • Recommended, when roof tiles do not have fourfold overlapping at the 4-roof-corner.
  • Nail tip.
  • Ring shanked.
  • Shorter installation time.
  • Small packaging units.
  • Storage on POM strips for FOS ClipHOLSTER®.
  • Low risk of injury.
  • International patents EP NP.
  • Small packaging unit: 200 pcs.
