404® tile hook to drive in

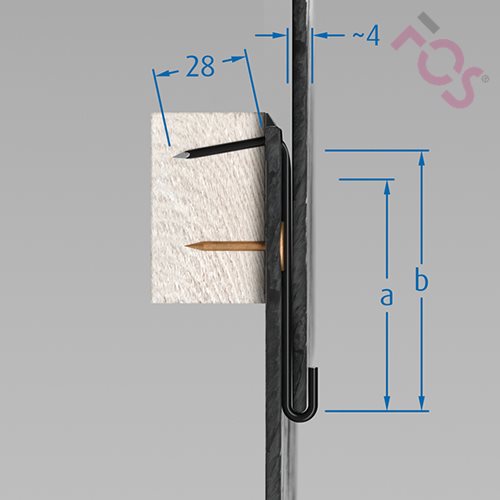

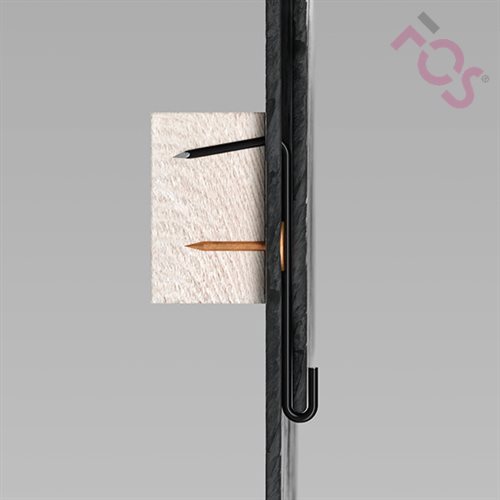

Fibre cement roof and facade tiles are secured with nails and additional tile hooks where necessary. The quite precise thickness of fibre cement roof and facade tiles allows installation with the tile hook 404® with a straight hook shape. The angle of the nail tip was purposely chosen so that the 404® can be nailed into the batten 10 mm above the tile from the front. A true nail end simplifies installation and the additional groves secures the grip.

The length of the tile hook 404® should be 10 mm longer than the head-lap of the selected tiling style. The product locator FOS ClipCHECK® determines the perfect hook by entering the area of application, the type of mounting, the roof tile and the batten. The hook is deliverable in stainless steel BS 304 S 15 and BS 320 S 31 polished and black and in copper. Packaging unit of the 404® depends on the product variant.

For 4 mm tiles

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
Copper
Copper
FOS tile hook 404 28 4
abHook widthCode
030,0040,0005,0404001
Application picture Installation instructionProduct flyer

Advantages

  • High quality materials.
  • Stainless quality deliverable in varnished black as well.
  • Nail tip.
  • Ring shanked.
  • Packaging unit depends on the product variant.
