461® nail end hook to drive in

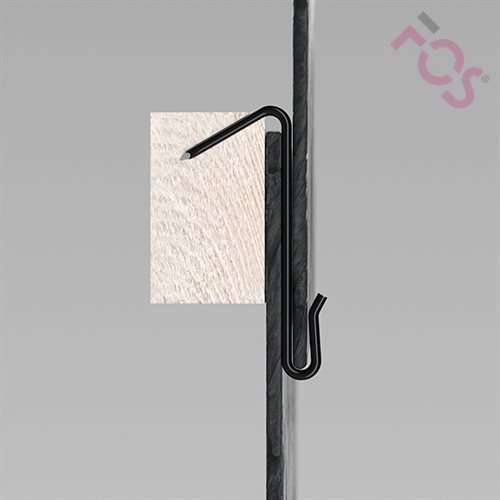

The nail end hook 461® is used to secure natural slate and fibre cement tiles on facades. It can be used with the standard slate formats and many tiling styles on subconstructions made of timber batten or roof boards. In combination with batten hooks, nail end hooks ensure professional fastening at cross over section of counter and support batten as well as the eaves course. On the other hand the entire roof or facade can be secured with nail end hooks. A true nail end simplifies installation and the groves enforce the grip. Regardless of the batten size and adapted to the tile thickness, the nail end hook is a secure and quickly-installed fastener.

The nail end hook is available in various lengths for different tile thicknesses. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 and BS 320 S 31 polished and black guarantee long durability of the hook. Nail end hooks from black varnished stainless steel are nearly invisible on roof and facade. The 461® is offered in packaging units of 500 pieces each.

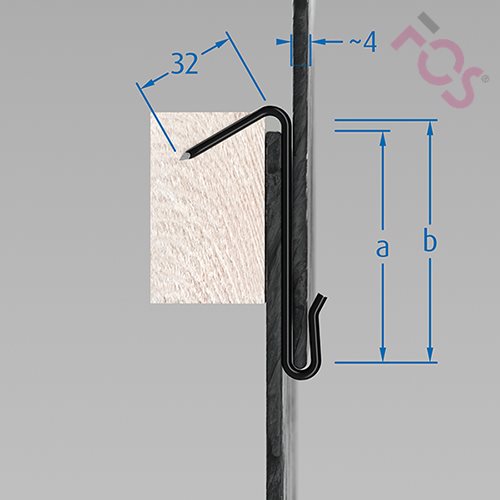

Tile thickness 4 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
FOS nail end hook 461 32 4
abCode
030,0040,0461001
Application picture Installation instructionProduct flyer

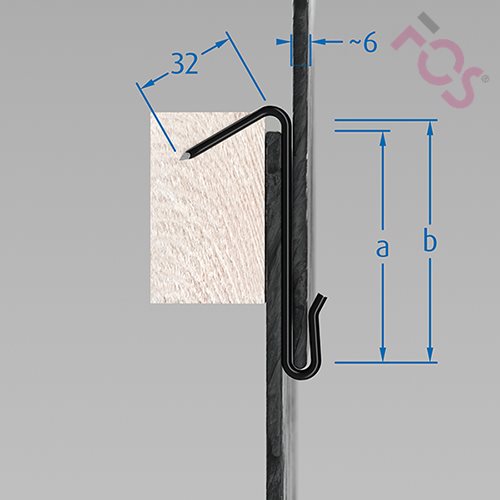

Tile thickness 6 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
FOS nail end hook 461 32 6
abCode
030,0040,0461024
Application picture Installation instructionProduct flyer

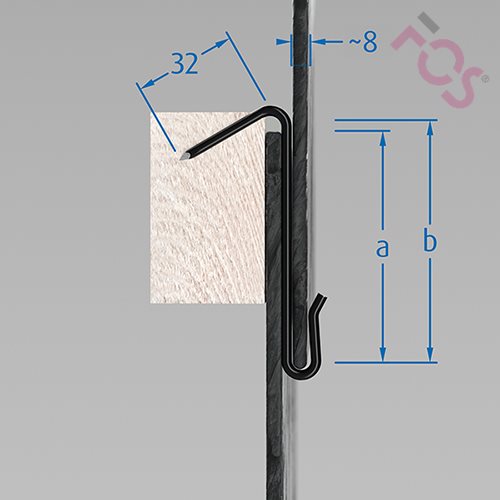

Tile thickness 8 mm

1.4301 uncoated
1.4571 uncoated
1.4571 black
FOS nail end hook 461 32 8
abCode
040,0050,0461030
050,0060,0461025
Application picture Installation instructionProduct flyer

Advantages

  • High quality materials.
  • Stainless quality deliverable in varnished black as well.
  • Deliverable in different lengths.
  • Suitable for standard wooden battens.
  • Nail tip.
  • Ring shanked.
  • Storage on adhesive strips.
  • Packaging unit: 500 pcs.
