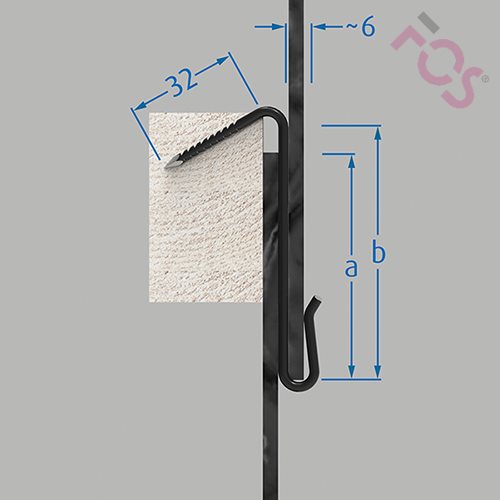

461®-2 nail end hook to drive in

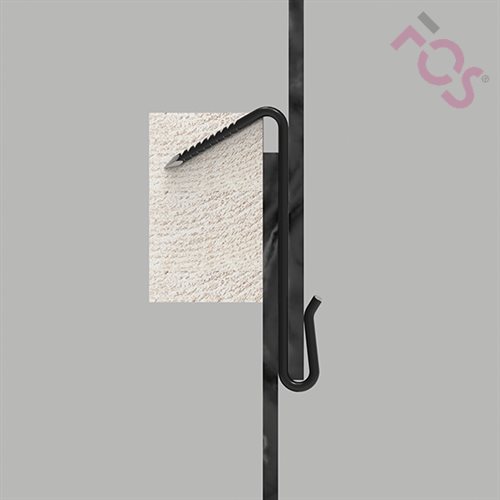

The nail end hook 461®-2 is used to secure natural slate and fibre cement tiles on facades. It can be used with the standard slate formats and many tiling styles on subconstructions made of timber batten or roof boards. In combination with batten hooks, nail end hooks ensure professional fastening at cross over section of counter and support batten as well as the eaves course. On the other hand the entire roof or facade can be secured with nail end hooks. A true nail end simplifies installation and the groves enforce the grip. The newly smoothed end of the clip reduces the risk of injuries. Regardless of the batten size and adapted to the tile thickness, the nail end hook is a secure and quickly-installed fastener.

In order to simplify the handling of the hook for roofers, FOS® offers the 461®-2 collated on plastic strips. Each strip contains 25 hooks and is suitable for the FOS ClipHOLSTER®. The magazine hook storage on plastic strips enables swift individual hook removal and reduces the risk of injury as well.

On the roof the use of the ClipHOLSTER accelerates the installation considerably. Because the ClipHOLSTER is fastened to the belt, the hooks are within easy reach. The roofer has his hands free and can therefore work more efficiently. Empty magazine strips can be replaced quickly and conveniently. Note: Using the red protective cap reduces the risk of injury.

The nail end hook 461®-2 is available in various lengths for standard tile thicknesses. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 and BS 320 S 31 guarantee long durability of the hook. Nail end hooks from black lacquered stainless steel are nearly invisible on roof and facade. The 461®-2 is offered in packaging units of 250 pieces each.

Tile thickness 4 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
magaziniert
POM
FOS nail end hook 461 2 32 4
abCode
040,0050,0461501
050,0060,0461502
060,0070,0461503
070,0080,0461504
080,0090,0461505
090,0100,0461506
100,0110,0461507
110,0120,0461508
120,0130,0461509
Application picture Installation instructionProduct flyerVideo

Tile thickness 6 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
magaziniert
POM
FOS nail end hook 461 2 32 6
abCode
040,0050,0461511
050,0060,0461512
060,0070,0461513
070,0080,0461514
080,0090,0461515
090,0100,0461516
100,0110,0461517
110,0120,0461518
120,0130,0461519
Application picture Installation instructionProduct flyerVideo

Advantages

  • High quality materials.
  • Stainless quality deliverable in varnished black as well.
  • Deliverable in different lengths.
  • Suitable for standard wooden battens.
  • Nail tip.
  • Ring shanked.
  • Smoothed end of the clip.
  • Shorter installation time.
  • Storage on POM strips for FOS ClipHOLSTER®.
  • Low risk of injury.
  • Packaging unit: 250 pcs.
