460® batten hook to mount on

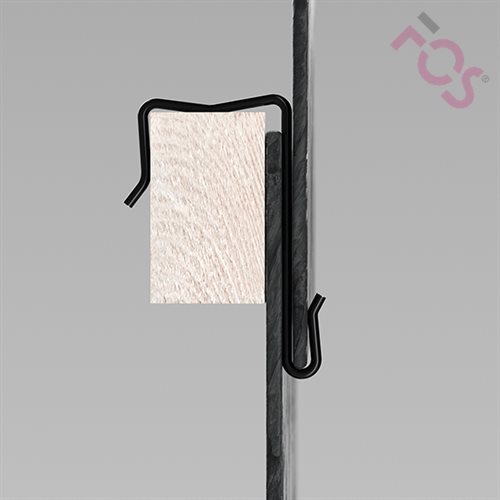

The batten hook 460® is suitable to secure natural slate as well as fibre cement tiles. It can be used for standard slate formats and many tiling styles on subconstructions consisting of timber batten or metal struts. The batten hook 460® can be easily clipped onto the batten between the rafters. Adapted to the head-lap, the standard batten size and the tile thickness, the hook is a secure and quickly-installed fastener.

The batten hook is available in various lengths for different batten and tile thicknesses. The product locator FOS ClipCHECK® determines the perfect hook by entering the area of application, the type of mounting, the roof tile and the batten. Stainless steel BS 304 S 15 and BS 320 S 31 polished and black guarantee long durability of the hook. Batten hooks from black varnished stainless steel are nearly invisible on roof and facade. The 460® is offered in packaging units of 500 pieces each.

Batten thickness 24 mm, tile thickness 4 mm

1.4571 uncoated
1.4571 black
FOS batten hook 460 24 4
abBattensCode
030,0040,024 x XX460001
Application picture Installation instructionProduct flyer

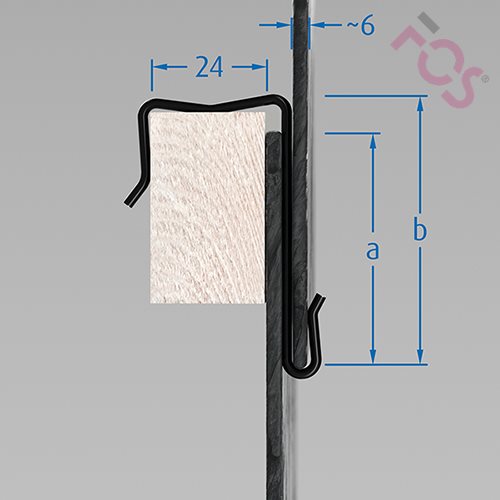

Batten thickness 24 mm, tile thickness 6 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
FOS batten hook 460 24 6
abBattensCode
030,0040,024 x XX460083
Application picture Installation instructionProduct flyer

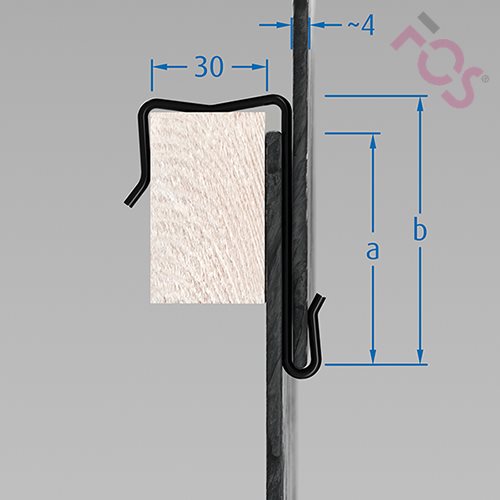

Batten thickness 30 mm, tile thickness 4 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
FOS batten hook 460 30 4
abBattensCode
030,0040,030 x XX460060
Application picture Installation instructionProduct flyer

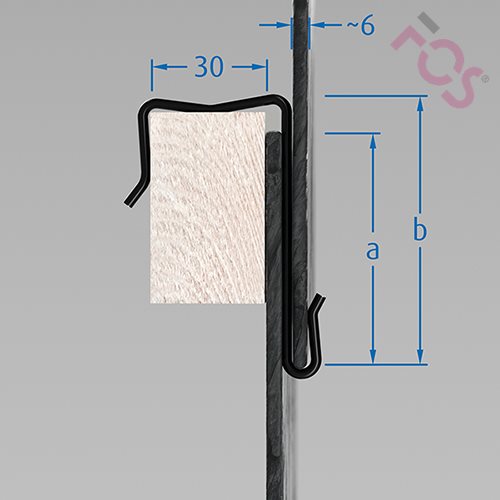

Batten thickness 30 mm, tile thickness 6 mm

1.4301 uncoated
1.4301 black
1.4571 uncoated
1.4571 black
FOS batten hook 460 30 6
abBattensCode
030,0040,030 x XX460061
Application picture Installation instructionProduct flyer

Advantages

  • High quality materials.
  • Stainless quality deliverable in varnished black as well.
  • Deliverable in different lengths.
  • Suitable for standard wooden battens.
  • Tool-free installation.
  • Storage on adhesive strips.
  • Packaging unit: 500 pcs.
