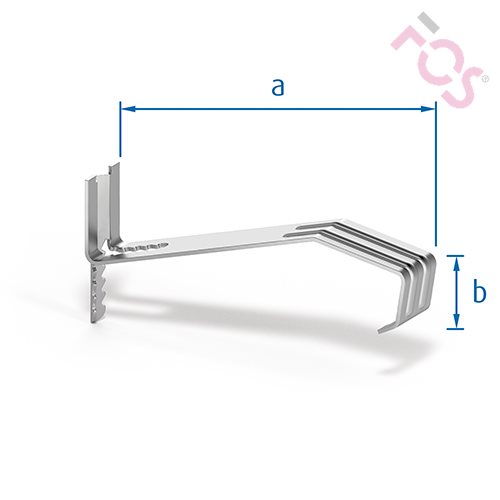

455 head clip to drive in

Head clips 455 guarantee a high resistance against wind uplift loads when fixing southern Roman tiles on the roof. The jagged drive-in tip makes it easier to drive into the batten. The beading optimisation provides a strong hold. The 455 will fix three tiles in the four-tile corner and is placed at the highest point of the tile. The clip can be used for left and right-hand roof tiles where the head covers the side fold.

ZIAL® (zinc-aluminium) and BS 304 S15 stainless steel guarantee a long lifetime. The small packaging sizes are very handy for repair work, for example. The product locator FOS ClipCHECK® determines the perfect clip by entering the area of application, the type of mounting, the roof tile and the batten.

ZIAL-r
ZIAL®
Stainless-steel-17981
1.4301
FOS Kopfklammer 455 001
abCode
081,5025,0455006
082,0011,0455001
088,0011,0455005
101,0011,0455002
101,0011,0455007
109,0011,0455004
110,0011,0455003
112,0011,0455008

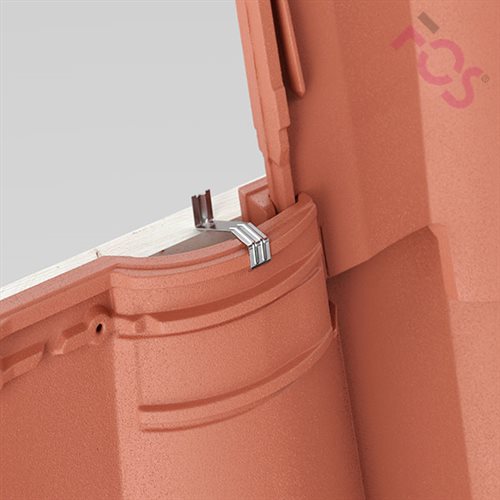

Application picture Product flyer Video

Advantages

  • Suitable for Roman roof tiles.
  • Storm safety in compliance with professional standards.
  • High wind uplift resistance.
  • High quality materials.
  • Deliverable in different designs for various roof tiles.
  • Strengthened with corrugations.
  • Suitable for standard wooden battens.
  • Drive-in aid.
  • Ring shanked.
  • Small packaging units.
  • International patents EP NP.
  • German Federal Utility Model DBGM.
  • Tested according to EN 14437.
  • Made in Germany.
  • Find clip allocation with FOS ClipCHECK®.
  • Telephone advice: +49 (0)2372. 558 99. 0.
